Leitmotif Usage

This page is for the person sitting in front of Leitmotif and trying to author a scene.

Leitmotif is not a separate runtime. It is an editor for choreography data the game already knows how to load.

The Basic Loop

flowchart LR
    open[Open scene or folder]
    select[Select sequence]
    trigger[Choose trigger]
    beats[Arrange steps and beats]
    preview[Preview and scrub]
    check[Check findings]
    export[Export to game]

    open --> select
    select --> trigger
    trigger --> beats
    beats --> preview
    preview --> check
    check --> export

In practice:

1. Open a scene file or a folder of scene files.
2. Select a sequence in the left pane.
3. Decide what starts it in the trigger panel.
4. Add, remove, move, or edit beats on the timeline.
5. Use the stage to place world-point actions when possible.
6. Run Check.
7. Export only once the scene validates.

The Screen

The core layout is stable: scene structure on the left, preview and timeline in the center, selected beat details on the right.

Area	What it is for
Header	New, open, save, undo, redo, story mode, and export.
Sequences	The named choreography units in the current scene.
Stage	A preview shell and placement surface for world-point beats.
Transport	Play, pause, scrub, and rebuild the preview.
Timeline	Ordered steps. Beats inside one step run together.
Trigger panel	The condition that starts the selected sequence.
Inspector	The selected beat’s actor, verb, and relevant fields.
Validation ribbon	Check the scene and apply safe fix suggestions.

Scene Mode

Scene mode is the normal beat-editing workspace.

flowchart TB
    sequence[Sequence]
    trigger[Starts when]
    step1[Step 1]
    step2[Step 2]
    beatA[Beat]
    beatB[Beat]
    inspector[Inspector]

    sequence --> trigger
    sequence --> step1
    sequence --> step2
    step1 --> beatA
    step1 --> beatB
    beatA --> inspector

A sequence is the thing the game starts. A step is a moment in time. Beats inside the same step happen in parallel.

Good first edits:

• change a trigger from Always to After N seconds
• add a say beat after a walk_in
• drag a beat to another step
• select a walk_to beat and click the stage to set x and y
• press ? to learn the shortcuts

Story Mode

Story mode is for opening a folder of scenes and seeing how scene files chain.

flowchart LR
    folder[Assets/Data/scenes]
    graph[choreo graph --json]
    canvas[Story canvas]
    layout[.leitmotif/layout.json]

    folder --> graph
    graph --> canvas
    layout --> canvas

The graph comes from the game’s own choreo graph --json output. Node positions are stored in a .leitmotif/layout.json sidecar beside the scene folder. That sidecar is editor layout data, not gameplay data.

Use story mode when you care about whole-story flow. Use scene mode when you care about one sequence’s beats.

Adding Beats

Use the + beat control on a step. The picker shows:

• the most likely suggested next beat
• the broader verb list from src/vocab.ts

The picker is intentionally biased toward common authoring moves without hiding the full vocabulary.

After a beat is added, select it and edit fields in the inspector. The form shows only fields relevant to the selected verb.

Placing Beats On The Stage

Some verbs carry a world point:

• walk_to
• walk_in
• teleport_to
• spawn_fx
• spawn_enemy

When one of these beats is selected, click the stage to set the position. This is the normal path for coordinate fields. Typing numbers is still possible, but it should not be the primary authoring experience.

Using Suggestions

Leitmotif’s current suggestions are deterministic and offline. They do not call an external service.

flowchart LR
    context[Current scene context]
    rules[RuleProvider]
    suggestions[Suggested beat / moment / fix]
    doc[SceneDoc]

    context --> rules
    rules --> suggestions
    suggestions --> doc

Suggestions are useful for:

• “what should happen after this beat?”
• inserting a small ready-made moment
• fixing a known validation finding
• snapping a placed point near an actor

Treat a suggestion as a draft, not as intent. The writer still chooses.

Checking And Exporting

Use Check while authoring. Check asks choreo validate for findings. If the finding is narrow and safe, the validation ribbon can offer a Fix button.

Export is stricter:

sequenceDiagram
    participant Writer
    participant Leitmotif
    participant Choreo as choreo
    participant GameFile as Game scene file

    Writer->>Leitmotif: Export to game
    Leitmotif->>Choreo: validate current scene
    Choreo-->>Leitmotif: clean or findings
    alt clean
        Leitmotif->>Choreo: convert JSON to TOML
        Choreo->>GameFile: write target
    else has errors
        Leitmotif-->>Writer: show findings, write nothing
    end

The editor should not write invalid content to the game. If export refuses, fix the finding or decide whether the engine contract needs to change.

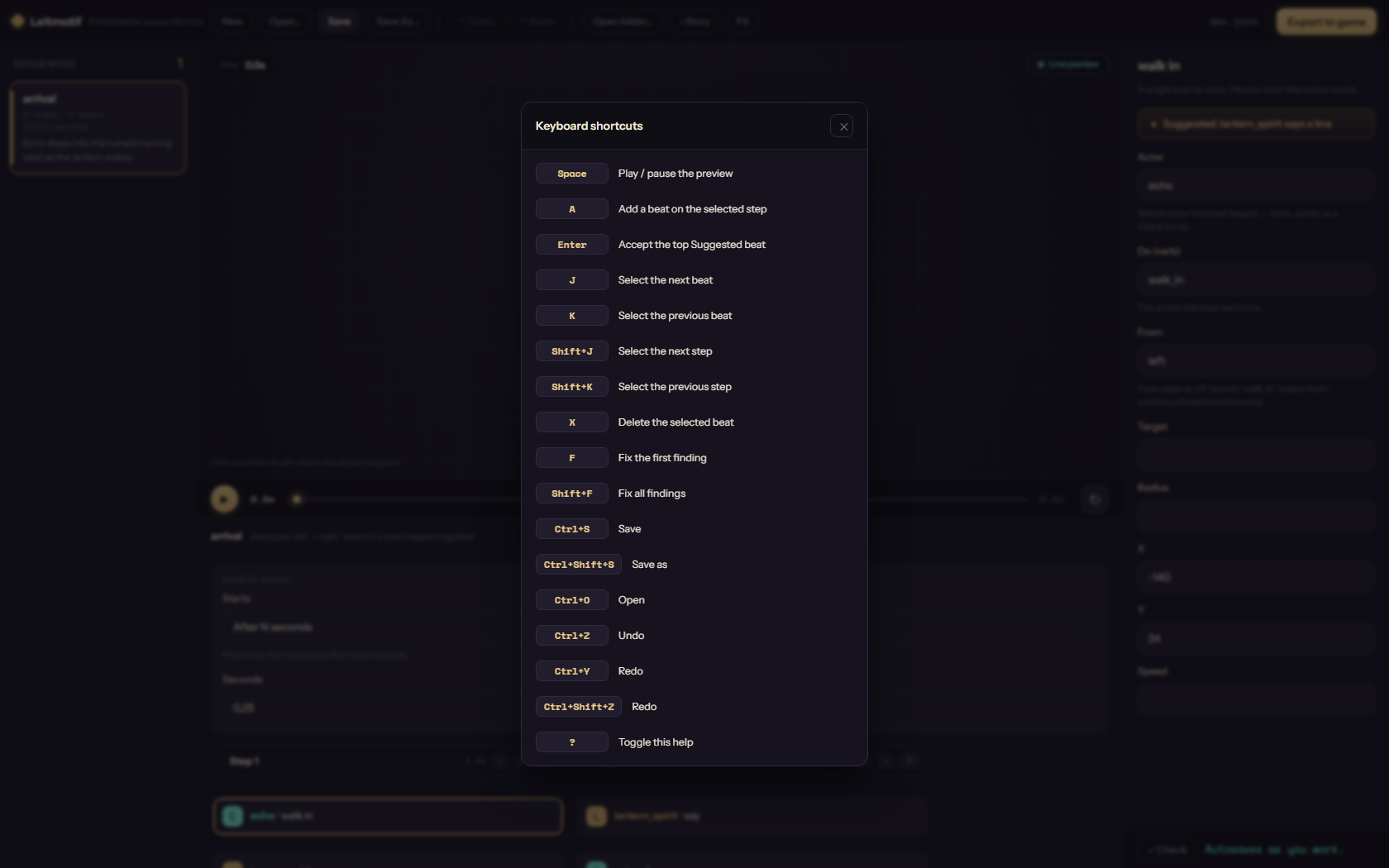

Keyboard Shortcuts

The shortcut overlay is generated from the same key binding table as the actual shortcuts.

High-frequency shortcuts:

Key	Action
Space	Play or pause preview.
A	Add a beat on the selected step.
Enter	Accept the top suggested beat.
J / K	Move beat selection.
Shift+J / Shift+K	Move step selection.
X	Delete selected beat.
F	Apply first available fix.
Shift+F	Apply all available fixes.
Ctrl+Z / Ctrl+Y	Undo / redo.
?	Toggle shortcut help.

Web Shell Limits

npm run dev is excellent for UI work, screenshots, and tests. It does not have native Tauri access.

In web-only mode:

• native file dialogs are unavailable
• bridge commands return friendly fallback errors
• live preview from choreo is unavailable
• dev-only window.__lmLoad(json) can load sample data for visual checks

For real file open, save, preview, graph, validate, and export work, run the Tauri app with CHOREO_BIN set.
